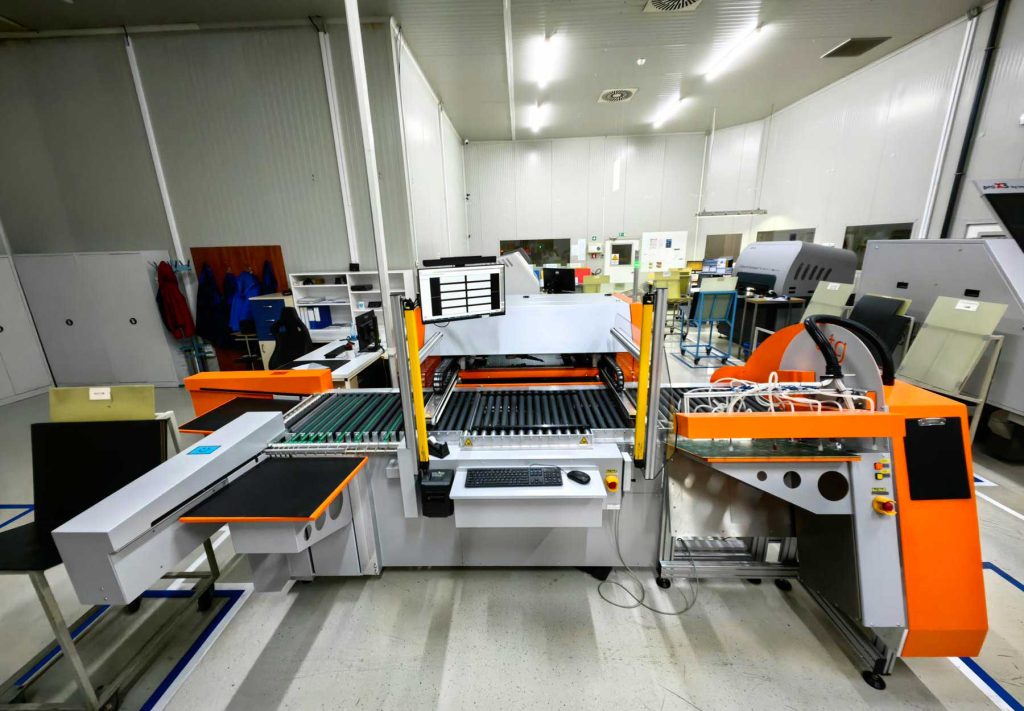

The ATG Model:A7a automatic test system allows us to test very demanding flex circuits with its flexibility and tensioning frame. It is also possible to test large batches automatically. It boasts a repeatable accuracy of 4µm and “Soft Touch” tips with a pressure of 5g – 10g, which means that tip impressions on solder pads are not visible.

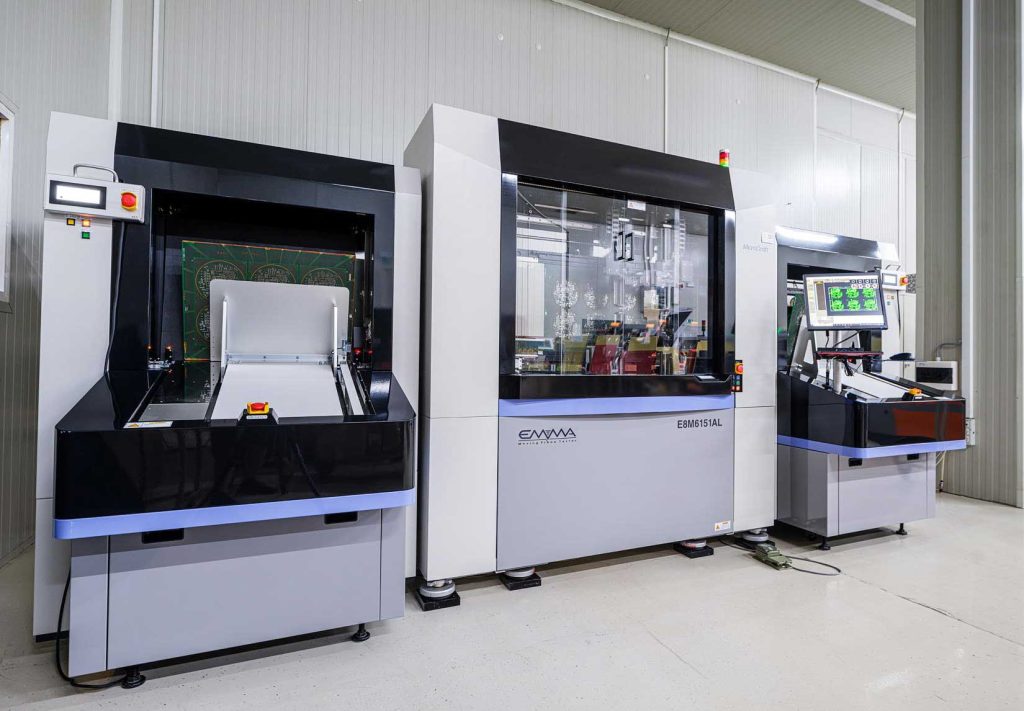

The Microcraft Emma Automatic System Model: E8M6151AL allows us to provide fully automated electrical testing. It boasts a repeatable accuracy of 4µm. Test speed reaches up to 10,000 test points/min.

Devices:

  • ATG Model: A7a
  • ATG Model: A6
  • ATG Model: A5
  • EMMA Model: E8M6151AL
  • EMMA Model: EM7761

ATG A7a characteristics:

  • Minimum plate size (automatic): 100mm x 100mm (4″ x 4″)
  • Maximum plate size (automatic): 535mm x 635mm (21″ x 25″)
  • Maximum panel thickness (automatic): 5mm
  • Minimum plate size (manual): 25mm x 25mm (1″ x 1″)
  • Maximum panel size (manual): 535mm x 635mm (21″ x 25″)
  • Maximum panel thickness (manual): 7mm
  • Minimum test point: 50µm
  • Adjustable test voltage: up to 1000V
  • Resistance threshold: 1Ω – 10kΩ
  • Isolation Threshold: up to 25MΩ (FM), up to 10GΩ (ohmic)
  • Camera scanning system: 4 HD colour cameras for fast top and bottom scanning
  • Resolution = 9µm/pixel
