LASER

CNC drilling

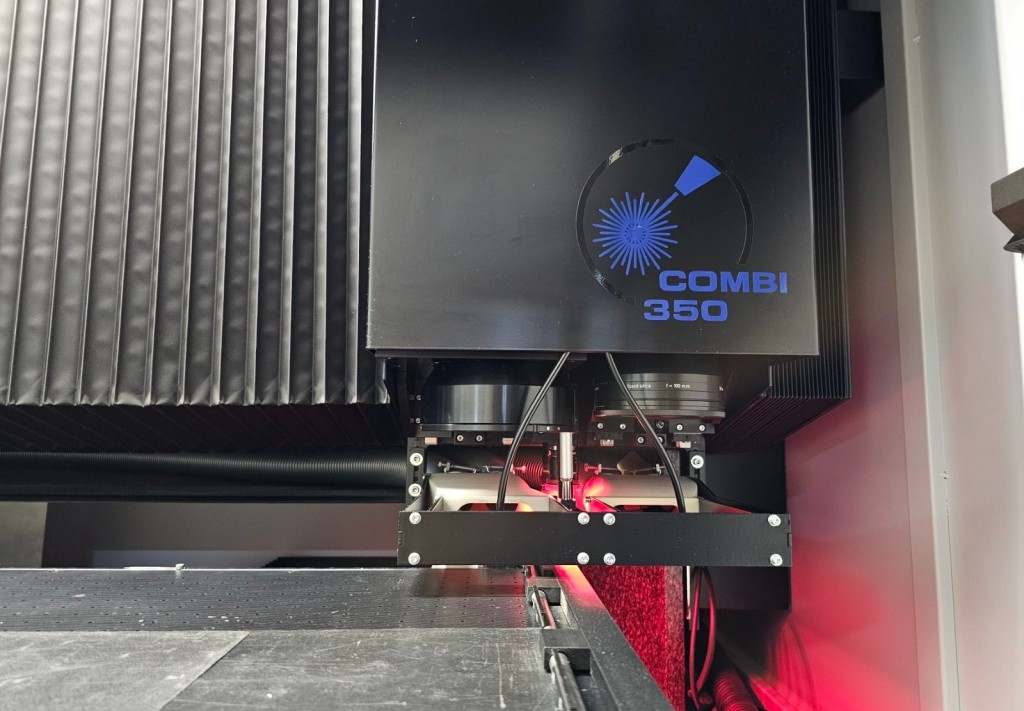

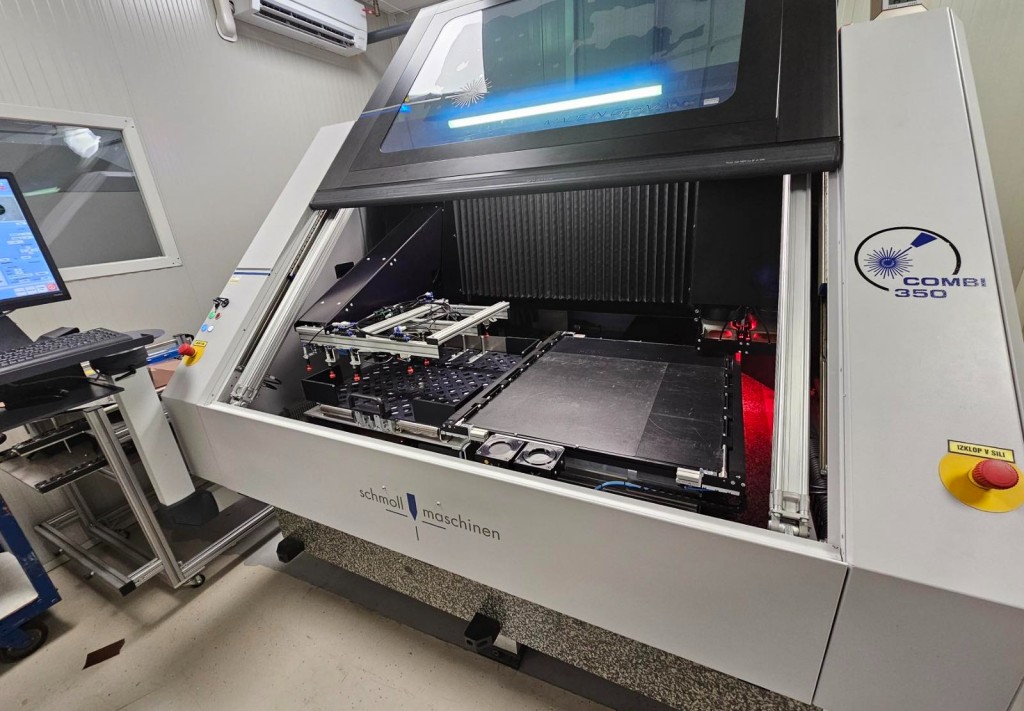

In the case of HDI-SBU panels with a high density of micro-holes with diameters below 0.15mm, we use laser drilling of the panels, using a machine manufactured by SCHMOLL type: CO2/UV CombiDrill 1-355-9.4

Devices:

  • CombiDrill 1-355-9.4

Technical characteristics:

  • CO2/UV laser technology
  • High-speed Galvo Z-axis scanners
  • Optical disc registration
  • User-friendly software
  • The machine can also laser trim PCBs up to 0.3mm thick
  • Maximum working format: 610mm x 610mm (24″ x 24″)
  • Drilling accuracy: +/-0.015mm
  • Drilling depth accuracy (blind holes): +/-0.025mm
